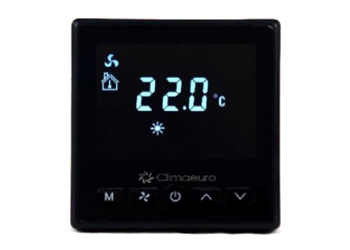

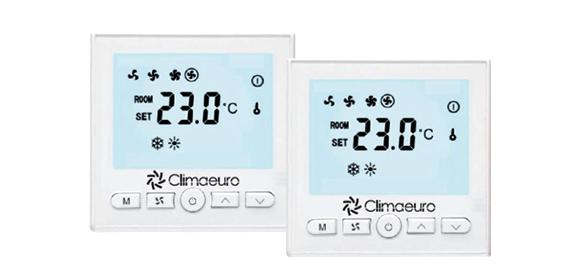

CE FCU Room Thermostat
Overview
Control comfort effortlessly with the CE-506hermostat- designed for energy- efficient fan coil units (FCUs) in residential, commercial, and institutional spaces. With intuitive fan speed control, heating/ cooling mode switch, and smart display, the CE-506 ensures reliable temperature regulation in any environment.
| Applications | Controls | Display |
| Homes | Zone Valves | Fan Speed: Low / Med / High / Auto |
| Residential Buildings | Fans | LCD with Blue/White/Green Backlight |
| Offices | Pumps | Room & Set Temp Display |
| Schools | Compressors | Mode Switching: Heating / Cooling |
|
|
|
Lock/Unlock Buttons |
General
-
Material: ABS & Acrylic
-
Power Supply: AC230V, 50/60Hz
-
Power Consumption: <1.5W
-
Temperature Range: 0-50°C
-
Storage Temp: -10-60°C
-
Humidity: <90% RH
-
Setpoint Accuracy: =1°C
-
Thermistor: 10K @25°C
Parameter Setting
-
Temp Calibration: -9°C- +9°C
-
Setpoint Limits: 5°C to 40°C
-
P-band Range: 2-10 (default : 10)
-
Switch-On/ Off Differential: 0.5-2°C
-
Fan Output (Manual/ Auto): 0-10V
High Flexibility
