Overview

The RAH+ Air Handling unit by Climaeuro is part of a new generation of HVAC systems designed to deliver high-performance solutions for comfort, hospital, pharmaceutical, food industry and hygienic applications. It's flexible design and customizable configurations allow for a wide range of airflow capacities and options making it a versatile choice for even the most demanding environments.

Provided of pentapost construction, with aluminium, perimetric frame and connections angles, is designed in 70 sizes with airflow range from 1.000 to 180.00 m3/h

RAH+ Air Handling Units are certified VDI 6022 (sheet1)e DIN 1964 (part 4) for hygienic requirements and thanks to continuous research of innovative solution, they are able to provide high air quality requirements to offer a safe and comfortable environment.


Materials:
Special Materials and  surface treatment  are available, providing chemical resistance or hygienic execution of the unit. Options stainless steel const ruction( components fully made in 304 or 316 stainless steel) or epoxy painted are available.

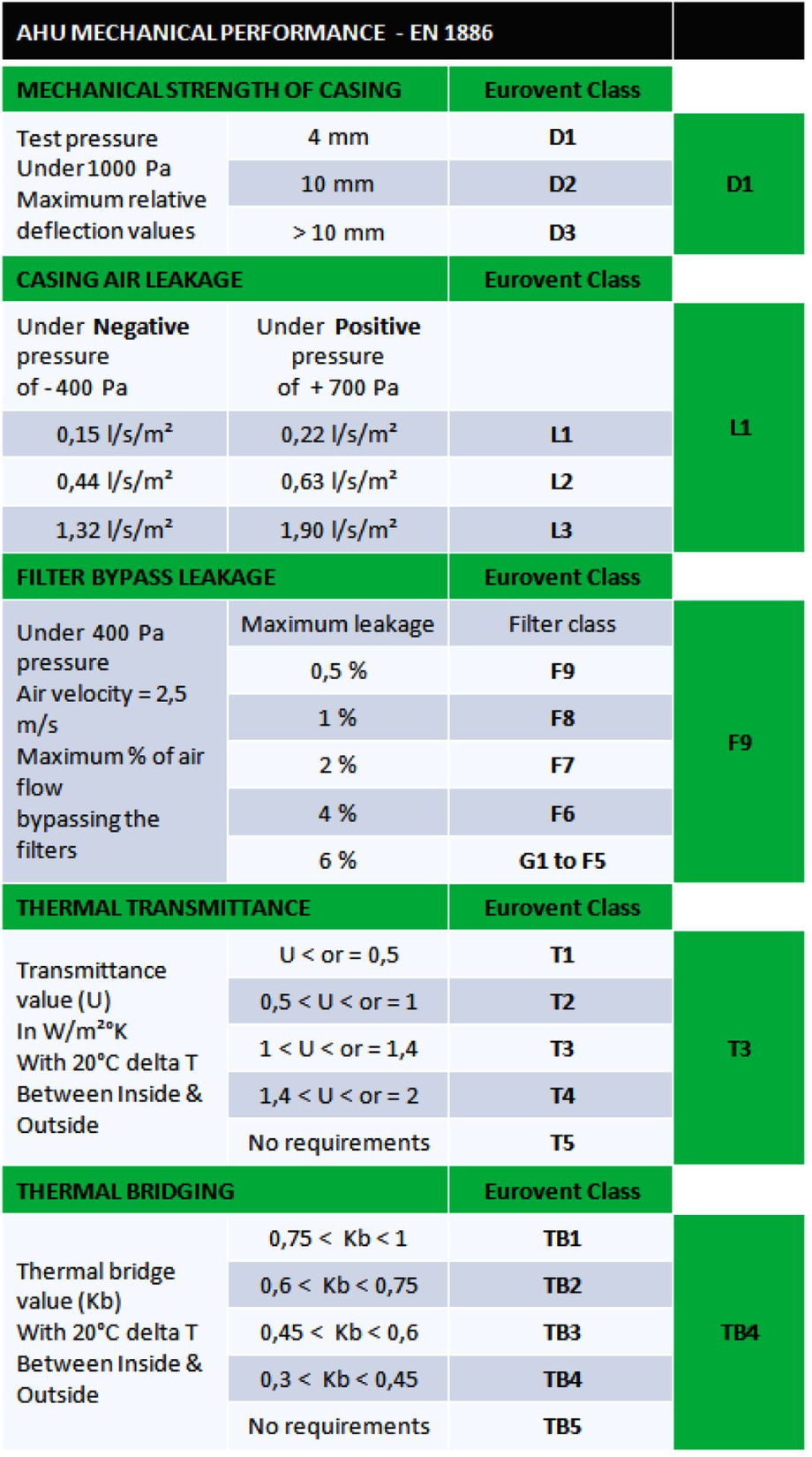

Air tightness of the casing:
Certified L1 EN 1886, reduces the air leakage of non treated air.

High Filter Air Tightness:
Certified F9 EN 1886 the filter is locked in a frame with gasket preventing the air bypassing the filter.

Inclined Drain Pan :

Cooling Coil and humidifier are provided with fully insulated  stainless steel drain pan, 4-sloped with bottom drain in the lowest point. Drain Pans can be optionally Provided in all the sections.

Internal Cleaning:
The Internal Parts of the unit are perfectly smooth. There is no use of internal screws ore bolts avoiding any dirty and dust accumulations, assuring a high grade of hygiene. Air Handling Units are provided of removable panels, this solution provides a full accessibility of the internal components for maintenance and cleaning.

Removable Components:
In all the units, coil and humidifiers are mounted on rail to be easily removed.
As option, all other components can be installed on rail for fast and easy removal.
Easy Assembly and Full Accessibility:
RAH+ Air Handling Units can be supplied in mono block or in modular sections: if provided in sections an easy, fast and fully reliable connection system is provided, assuring best in class air tightness and avoiding leakage of not treated air.

Thanks to pentapost construction, is section is fully accessible from the inspections  doors or by easy and fully casing removal.

RAH+ Air Handling Units have been designed to assure high operating efficiency end energy recovery, thanks to the smooth surface of the unit low air velocity and low pressure drops are possible. The result is a low  Specific Fan Power and high energy class.

Thanks to the wide range of options of fans, size, types variable frequency driver, a most reliable and efficient working condition is in reach. The RAH+ casing allows a low air leakage and a high thermal insulation, the design is in line with the international standards and is certified. The units are fully energy efficient.

The casing of RAH+ Air Handling Units  is manufactures using a patented new concept, made by aluminium framework and  nylon corners, no welding, assuring high corrosion resistance.

The sandwich panels  are assembled using wedge and gasket, Providing a high externa and internal finishing and smoothness, high air tightness and fully accessibility.

Panels are provided with different materials galvanized steel, painted steel, peraluman, 304 and 316 stainless steel, thickness of the metal sheet from mm0.6 to mm.1.0 and panel thickness of mm.50. or 60.


Certifications

RAH Air Handling Units-

EUROVENT CERTIFICATION

RAH Air Handling Units -

HYGIENE CERTIFICATION

High Flexibility

RAH units are available in every dimension and configuration: single or double fans,

in line, L or U shaped, double decker or side by side, vertical.
